Detalhes do produto:
Condições de Pagamento e Envio:
|
| Nome do artigo: | tubulação colorida do silicone | Densidade: | 1.15-1.25 g/cm3 |
|---|---|---|---|
| Material: | Silicone puro | Resistência à tração: | Mpa 6~10 |
| Dureza: | Costa 30A-80A | Temperatura de trabalho: | -60℃ -240℃ |
| Tempo da amostra: | 5-7 dias | Embalagem: | Saco poli e caixa ou personalizado |
| Realçar: | tubulação de borracha do produto comestível 1.15g/cm3,tubulação segura do silicone do alimento 10Mpa,tubulação segura do silicone do alimento 1.15g/cm3 |
||

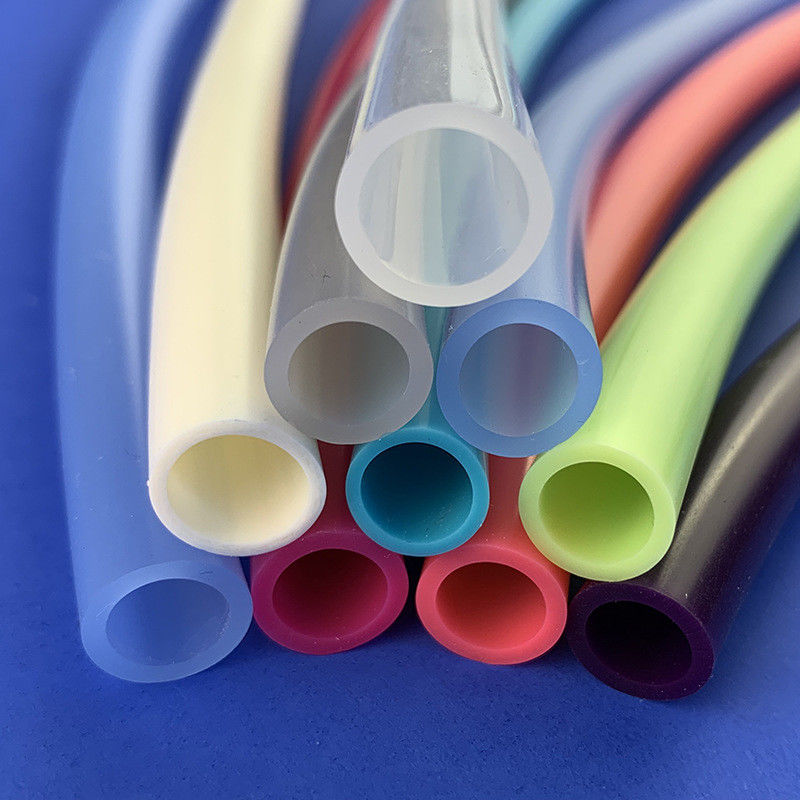

Mangueira do silicone do tubo colorido do silicone do período de longa vida
O silicone do período de longa vida coloriu mangueiras da borracha de silicone de Tubeing
Don'ts da mangueira do silicone
■Não use com em contato direto com as aplicações contínuas do vapor.
■Não use com os produtos petrolíferos em transferência fluida.
Reforço da tela, poliéster: até 350°F
■Nomex: °F até 500
■Fibra de vidro: também disponível até 500°F
Cores, formas, & tamanhos
■Muitas opções disponíveis
Mangueiras feitas sob encomenda
■Os fabricantes podem ajudá-lo a projetar um protótipo ou um produto para suas necessidades.
Descrições do produto
| Marca: | Tenchy |
| Number modelo: | TS-CT06 |
| Material: | Borracha de silicone |
| Nome: | Tubos do silicone |
| Cor: | branco, vermelho, azul, cinzento, verde, etc. |
| Tamanho: | Personalizado |
| Característica: | Favorável ao meio ambiente, não-tóxico, insípido, seguro e seguro |
| Aplicação: | Equipamento da transformação de produtos alimentares Isolação de alta tensão Autoclave, homem-maneira, e gaxetas do forno |
| Tubulação do silicone do produto comestível | ||||||
| Artigo # | Especificação | Tolerância | Comprimento disponível pela bobina (medidor) | |||
| Identificação (milímetro) | OD (milímetro) | Espessura (milímetro) |
para a identificação | para a espessura | ||
| ST-12 | 1,0 | 2,0 | 0,5 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-13 | 1,0 | 3,0 | 1,0 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-1525 | 1,5 | 2,5 | 0,5 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-153 | 1,5 | 3,0 | 0,8 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-23 | 2,0 | 3,0 | 0,5 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-24 | 2,0 | 4,0 | 1,0 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-25 | 2,0 | 5,0 | 1,5 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-26 | 2,0 | 6,0 | 2,0 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-34 | 3,0 | 4,0 | 0,5 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-35 | 3,0 | 5,0 | 1,0 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-36 | 3,0 | 6,0 | 1,5 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-46 | 4,0 | 6,0 | 1,0 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-47 | 4,0 | 7,0 | 1,5 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-48 | 4,0 | 8,0 | 2,0 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-57 | 5,0 | 7,0 | 1,0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-58 | 5,0 | 8,0 | 1,5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-59 | 5,0 | 9,0 | 2,0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-510 | 5,0 | 10,0 | 2,5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-68 | 6,0 | 8,0 | 1,0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-69 | 6,0 | 9,0 | 1,5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-79 | 7,0 | 9,0 | 1,0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-710 | 7,0 | 10,0 | 1,5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-711 | 7,0 | 11,0 | 2,0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-712 | 7,0 | 12,0 | 2,5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-713 | 7,0 | 13,0 | 3,0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-810 | 8,0 | 10,0 | 1,0 | ±0.20 | ±0.10 | 30, 50, 100 |
| ST-811 | 8,0 | 11,0 | 1,5 | ±0.20 | ±0.10 | 30, 50, 100 |
| ST-812 | 8,0 | 12,0 | 2,0 | ±0.20 | ±0.10 | 30, 50, 100 |
| ST-814 | 8,0 | 14,0 | 3,0 | ±0.20 | ±0.10 | 30, 50, 100 |
| ST-912 | 9,0 | 12,0 | 1,5 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-913 | 9,0 | 13,0 | 2,0 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-1012 | 10,0 | 12,0 | 1,0 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-1013 | 10,0 | 13,0 | 1,5 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-1014 | 10,0 | 14,0 | 2,0 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-1016 | 10,0 | 16,0 | 3,0 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-1214 | 12,0 | 14,0 | 1,0 | ±0.2 | ±0.10 | 30, 50 |
| ST-1216 | 12,0 | 16,0 | 2,0 | ±0.2 | ±0.10 | 30, 50 |
| ST-1218 | 12,0 | 18,0 | 3,0 | ±0.2 | ±0.10 | 30, 50 |
| ST-1317 | 13,0 | 17,0 | 2,0 | ±0.2 | ±0.15 | 30, 50 |
| ST-1318 | 13,0 | 18,0 | 2,5 | ±0.2 | ±0.15 | 30, 50 |
| ST-1420 | 14,0 | 20,0 | 3,0 | ±0.25 | ±0.15 | 30, 50 |
| ST-1620 | 16,0 | 20,0 | 2,0 | ±0.25 | ±0.15 | 30, 50 |
| ST-1621 | 16,0 | 21,0 | 2,5 | ±0.25 | ±0.15 | 30, 50 |
| ST-1622 | 16,0 | 22,0 | 3,0 | ±0.25 | ±0.15 | 30, 50 |
| ST-1623 | 16,0 | 23,0 | 3,5 | ±0.25 | ±0.15 | 30, 50 |
| ST-1722 | 17,0 | 22,0 | 2,5 | ±0.3 | ±0.15 | 30, 50 |
| ST-1824 | 18,0 | 24,0 | 3,0 | ±0.3 | ±0.15 | 30, 50 |
| ST-1925 | 19,0 | 25,0 | 3,0 | ±0.4 | ±0.20 | 30, 50 |
| ST-2024 | 20,0 | 24,0 | 2,0 | ±0.4 | ±0.20 | 30, 50 |
| ST-2025 | 20,0 | 25,0 | 2,5 | ±0.4 | ±0.20 | 30, 50 |
| ST-2026 | 20,0 | 26,0 | 3,0 | ±0.4 | ±0.20 | 30, 50 |
| ST-2226 | 22,0 | 26,0 | 2,0 | ±0.4 | ±0.2 | 30, 50 |
| ST-2530 | 25,0 | 30,0 | 2,5 | ±0.6 | ±0.2 | 30, 50 |
| ST-2531 | 25,0 | 31,0 | 3,0 | ±0.6 | ±0.2 | 30, 50 |
| ST-3038 | 30,0 | 38,0 | 4,0 | ±0.6 | ±0.3 | 30, 50 |
| ST-3040 | 30,0 | 40,0 | 5,0 | ±0.6 | ±0.3 | 30, 50 |
| ST-3238 | 32,0 | 38,0 | 3,0 | ±0.6 | ±0.3 | 30, 50 |
| ST-3240 | 32,0 | 40,0 | 4,0 | ±0.6 | ±0.4 | 30, 50 |
| ST-3545 | 35,0 | 45,0 | 5,0 | ±0.6 | ±0.4 | 30, 50 |
| ST-3844 | 38,0 | 44,0 | 3,0 | ±0.6 | ±0.4 | 30, 50 |
